Products

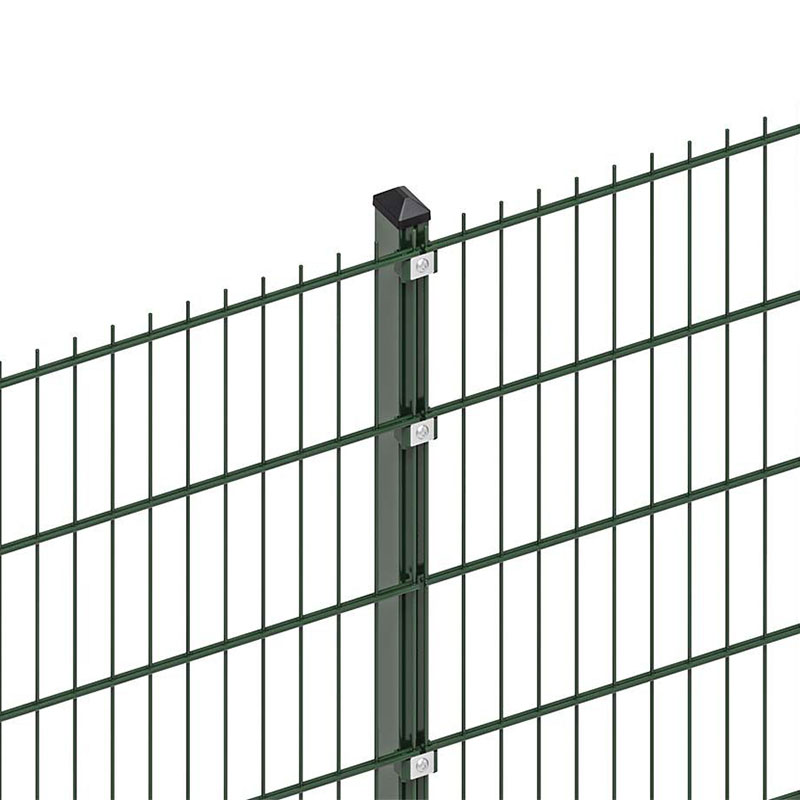

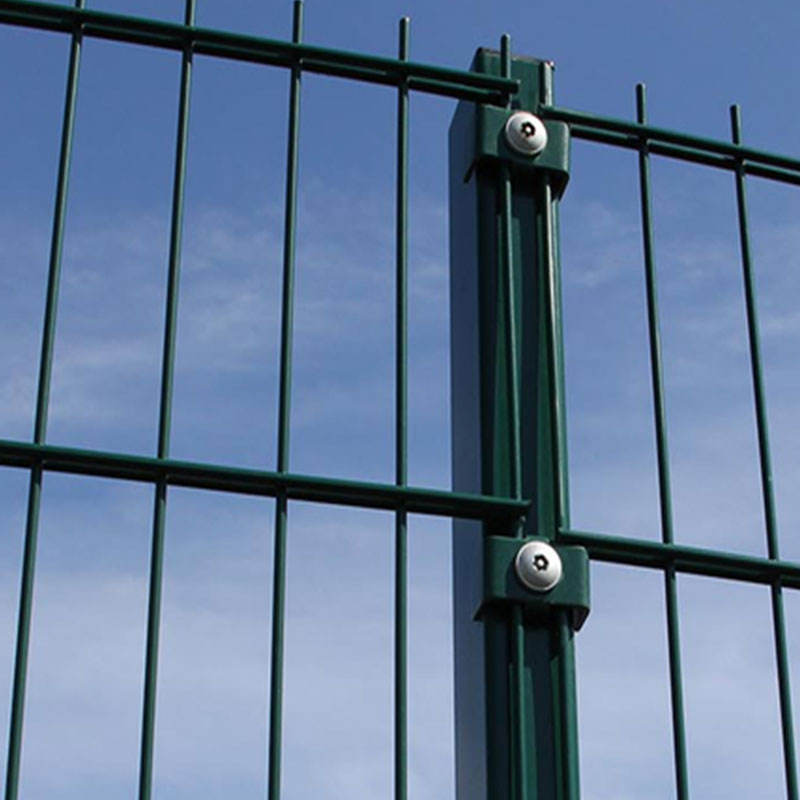

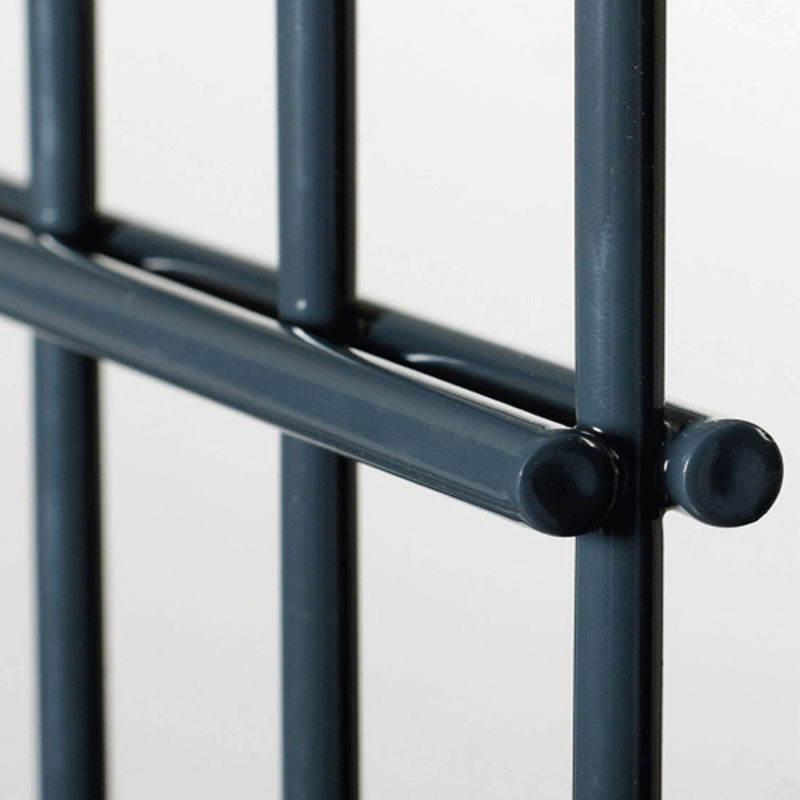

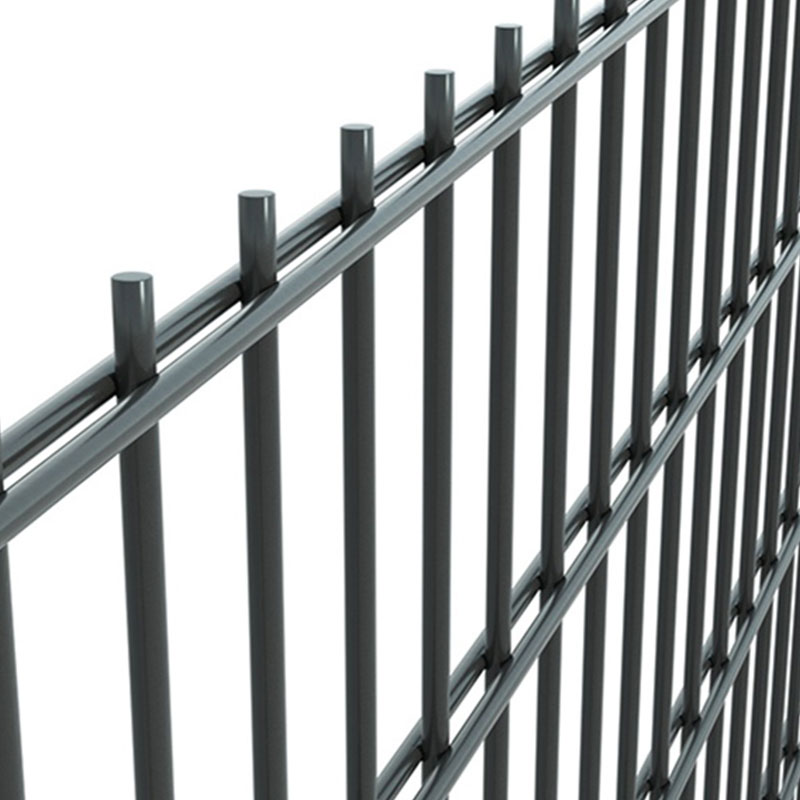

Double Wire Panel Fencing
Double wire panel fencing features lattice design, aesthetics, practicality and landscape design. In addition, because double wire panel fencing is easy to transport and install without the restrictions of difficult terrain, it is suitable for mountainous, hilly and winding areas.
Description
marker
Product Description
Double wire panel fencing features lattice design, aesthetics, practicality and landscape design. In addition, because double wire panel fencing is easy to transport and install without the restrictions of difficult terrain, it is suitable for mountainous, hilly and winding areas.
Standard Specifications
| Popular Specifications for Double Wire Panel Fencing | |||||
| Panel height | Pole height | Cell size | Wire diameter | Panel width | Pillar |
| 630 mm | 1100 mm | 50x200 mm (standard) | 8/6/8 mm 6/5/6 mm | 2000 mm 2500 mm 3000 mm | Square post Rectangular post 40*40 mm, 40*60 mm 50*50 mm, 60x60 mm 60*80 mm |
| 830 mm | 1300 mm | ||||
| 1030 mm | 1500 mm | ||||
| 1230 mm | 1700 mm | ||||
| 1430 mm | 1900 mm | ||||
| 1630 mm | 2100 mm | ||||
| 1830 mm | 2400 mm | ||||
| 2030mm | 2600 mm | ||||
| 2230 mm | 2800 mm | ||||
| 2430 mm | 3000 mm | ||||
| Custom sizes are also welcome | |||||
Double wire panel fencing has an attractive appearance, a variety of colors, and serves not only a fencing function, but also a decorative function.
Common colors
● Dark green (RAL6005)
● Pure white (RAL9010)
● Stone gray (RAL7030)
● Black (RAL9005)
● Anthracite gray (RAL7016)
Other colors
contact us
